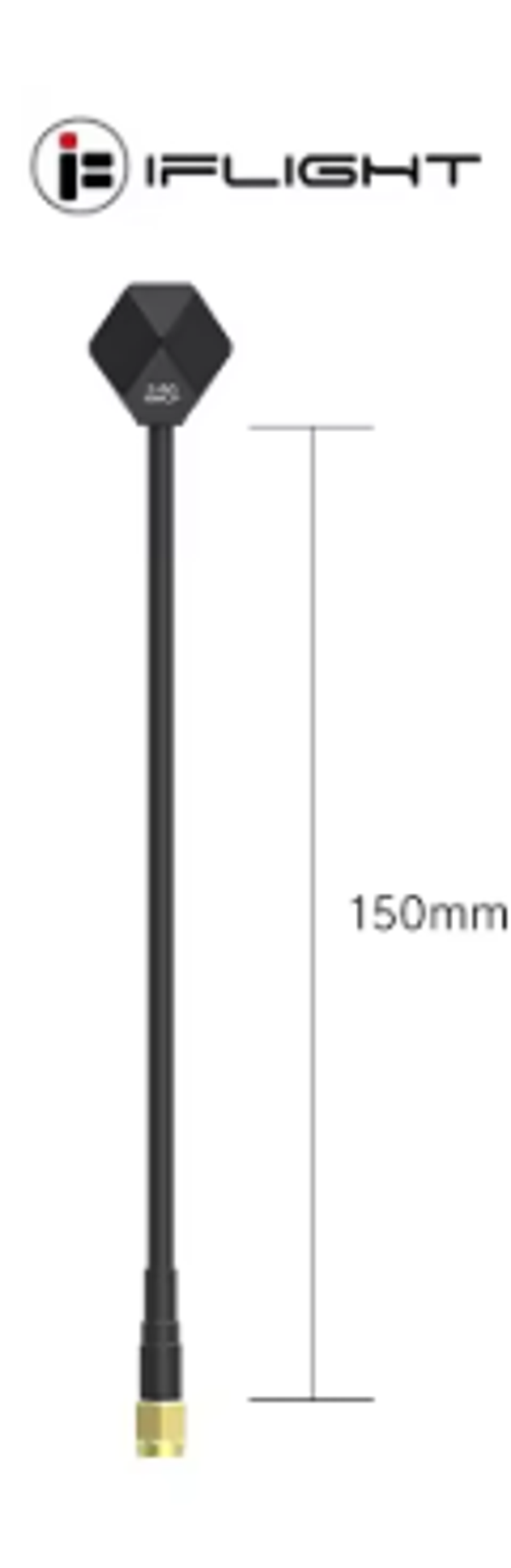

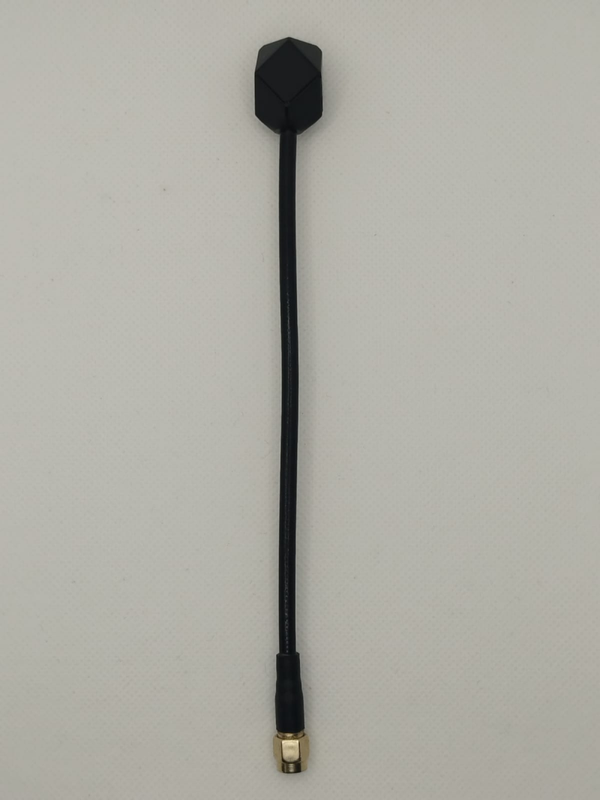

iFlight Albatross V2 5.8GHz RHCP RPSMA FPV Antenna 150mm
15,00 €
zzgl. Versandkosten
Spezifikationen:
Frequenz: 5.3GHz-6GHz
MAX Gain: 2.65dbi(5695MHz)
MIN Gain: 2.06dbi(5362MHz)
AVG Gain: 2.4dbi
MAX VSWR:1.75(5917MHz)
MIN VSWR: 1.46(5621MHz)
AVG VSWR: 1.75
MAX radiation efficiency: 86%(5436MHz)
MIN adiation efficiency: 76%(5917MHz)
AVG adiation efficiency: 83%
Polarization: RHCP
Cross polarization suppression:-25dB
Axial Ratio:≤ 3
Cable:RG141
Weight:7g
Size:Line length60mm/total length83mm

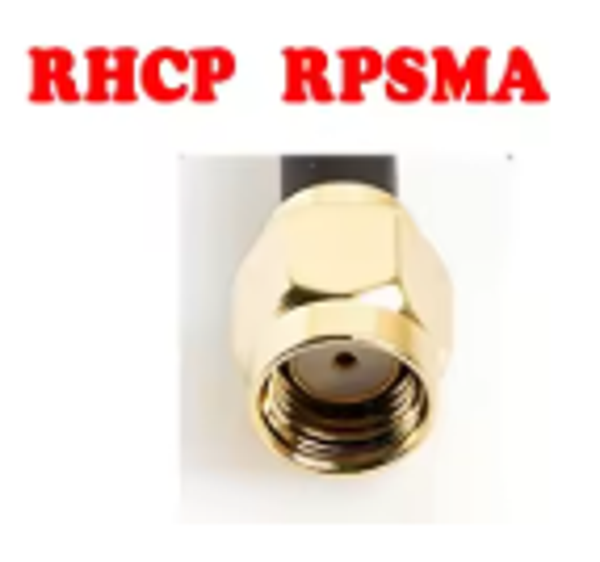

Connector:RPSMA /SMA
Lieferumfang:
1x iFlight Albatross V2 RPSMA RHCP 15cm
