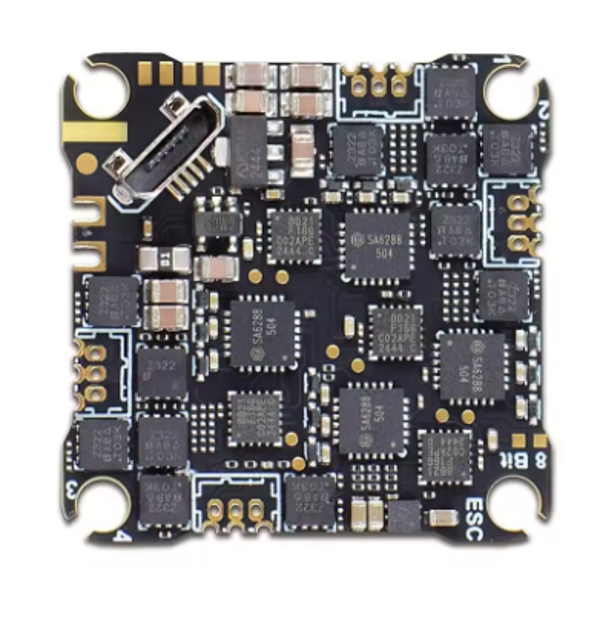

JHEMCU GHF435 AIO V2 2-4S 20A

Brand name:JHEMCU
Model:GHF435AIO V2
MCU:AT32F435CG/288MHZ
IMU:ICM-42688-P/Gyro/Accel
OSD:AT7456E
Baro:YES
Blackbox:16MB
Input voltage:2-4S (7.4V-17V)
5V-BEC:5V/2.5A±0.1V
UART:UART1，UART2，UART3，UART5
Receiver:ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS
LED-strip:WS2812
Buzzer:YES(5V)
GPS:YES
Compass:YES
HD O3:YES
USB:Micro USB
Current port:YES
Voltage sensor:YES
DFU button:YES
FC Firmware:Betaflight JHEF435
Size:30*30MM
Mounting Hole:25.5*25.5*3MM
Weight:5g
ESC Current:20A
ESC MCU:EFM8BB21F16G
ESC TYPE:BlueJay
ESC Firmware:G-H-30
ESC protocol:Dshot150, Dshot300, Dshot600.
Receiver Type:ELRS
Receiver frequency:2.4GHZ
Receiver Signal Protocol:CRSF
Receiver firmware:betafpv.rx_2400.lite.
WIFI firmware update:YES
Independent receiver:YES
