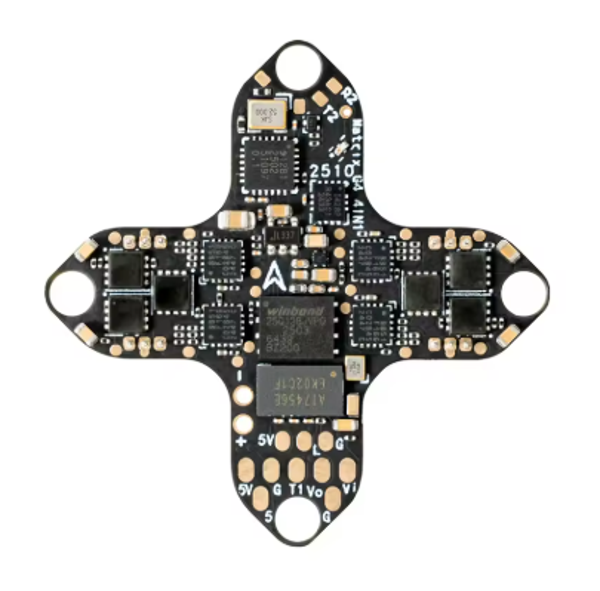

BetaFPV Matrix Brushless FC G4 4in1

Spezifikationen:
Brand: BETAFPV
Model: Matri
Item Name: 1S 12A 3IN1 4IN1 AIO Brushless FC

FC

MCU: STM32G473CEU6 (168MHz)

Gyro: ICM42688P

Blackbox Memory: 16MB

Sensor: Voltage & current

BEC: 5V/3A

UART (3IN1 Version): UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP)

UART (4IN1 Version): UART 1 (For VTX), UART 2 (Free), UART 3 (For RX), UART 4 (NONE)

ESC: 12A continuous

RX: Serial ELRS 2.4GHz (V3.4.3)

FC Firmware:

Betaflight_4.5.1_BETAFPVG473 (3IN1 version),

Betaflight_4.5.2_BETAFPVG473_V2 (4IN1 version)

USB Port: SH1.0-4Pin

OSD: AT7456E (4IN1 version only)

HD Digital VTX Port: SH1.0-6Pin (3IN1 version only)

Motor Plug: JST1.25-3Pin

Battery Connector: BT2.0

Mounting Size: 25.5mm x 25.5mm

Weight (3IN1 Version): 3.8±0.1g (battery connector excluded), 4.2±0.1g (battery connector included)

Weight (4IN1 Version): 3.6±0.1g (battery connector excluded), 4.6±0.1g (battery connector included)

ESC
Power Input: 1S only
Current: 12A continuous, 18A peak
ESC Firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware
Digital Signal Protocol: DSHOT300, DSHOT600
