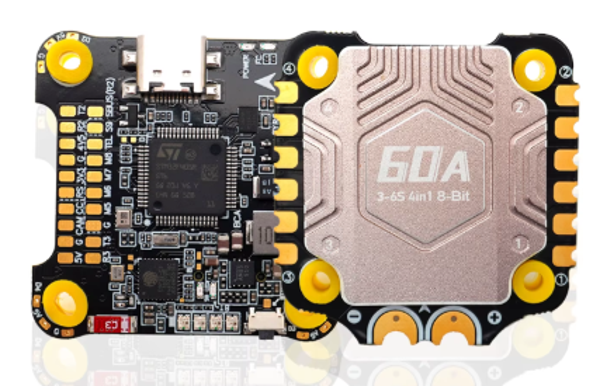

Speedybee F405 / 60A Stack Bulk 30x30

Spezifikationen:

Product Name: BLS 60A 30x30 4-in-1 ESC

Firmware: BLHeli_S J-H-50

Continuous Current: 60A * 4

Burst Current: 80A(10 sec)

TVS Protective diode: Yes

External Capacitor: 1000uF Low ESR Capacitor(In the package)

ESC Protocol: DSHOT300/600

Power Input: 3-6S LiPo

Power Output: VBAT

Current Sensor: Support (Scale=400 Offset=0)

ESC Telemetry: Not supported

Mounting: 30.5 x 30.5mm( 4mm hole diameter)

Dimension: 45.6(L) * 44(W) *8mm(H)

Weight: 23.5g

Product Name: F405 V4 30x30 Flight Controller

MCU: STM32F405

IMU(Gyro): ICM42688P

USB Port Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E chip

Power Input: 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)

BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)

WIFI: Not supported

DJI Air Unit Connection Way: Two ways supported: 6-pin connector or direct soldering.

6-pin DJI Air Unit Plug: Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.

Firmware Target Name: F405V4

Mounting: 30.5 x 30.5mm( 4mm hole diameter)

Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm

Weight: 10.5g
