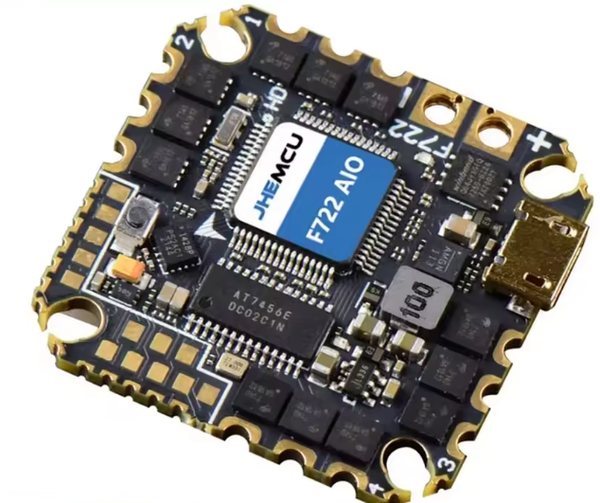

JHEMCU GHF722 AIO HD 40A

Spezifikationen:

Model: GHF722AIO-HD
Main Control: STM32F722RE(216MHZ)
Gyroscope: ICM-42688-P
Barometer: Yes
OSD Chip: AT7456E
Black Box: 8MB
LED Programming: Support
BB Rattle: Support
Input Voltage: 2-6S
I2C Interface: Support



BEC: 5V/2.5A
Camera Input: Support
USART: UART1,UART2,UART3,UART4,UART5,UART6
Flight control firmware: betaflight_4.4.2_JHEF7DUAL.HEX


ESC Current: 40A * 4
Ammeter: Yes
Firmware: Bluejay G-H-30.HEX (48K)
Whether to support BLHELI S: Yes
Default ESC driver protocol for flight control: DSHOT600
Mounting hole spacing: 25.5-26.5MM*3MM
Maximum external size: 33*33MM
Weight: 7.6g
